You can underlay the furniture in a reflected ceiling plan view.

Show floor plan underlay in reflected ceiling plans revit.

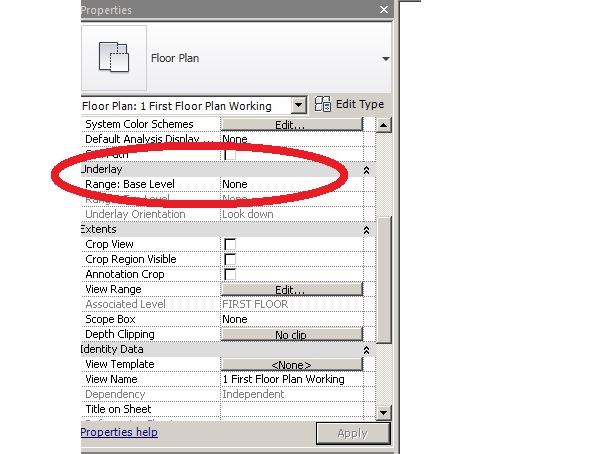

On the properties palette for underlay orientation select look up or look down. In this simple exercise file there are four walls and some desks placed at level 1. When underlay orientation is set to look down the underlay displays as if you are viewing it from above like a plan view. However i m noticing when i m doing this in revit it is as if it is looking from.

Allow underlays of reflected ceiling plans in floor plans revit does not currently allow you to underlay a regular floor plan with a reflected ceiling plan. In order to show the elements from the first level here you can underlay them in the view. Ive told him he can make a reflected ceiling plan with the ductwork and air terminals turned on but they didnt like how it looked. Once i do this my roof element become visible in the ground floor plan.

Underlay use underlay instance property of the view and set it to reflected ceiling plan of the current level to look up. In the reflected ceiling plan set underlay to the respective floor plan then change the underlay orientation to plan now the floor plan that has the furniture will display to display the furniture dashed override the underlay line pattern from under manage additional settings halftone underlay. You can underlay the ceiling grid in a plan view. If it is too gray then go to manage tab additional settings halftone underlay and uncheck apply halftone checkbox and add desired line weight and line pattern.

So i change the underlay parameter you find this is the properties palette to the level where your roof or roof light canopy etc resides. Enjoy the videos and music you love upload original content and share it all with friends family and the world on youtube. And on and on. Because i often want to show roof eaves or other architectural features that are above the cut plane of a plan sometimes way above.

One of the engineers in the office asked a fellow cad guy to plot him the floor plans with ceiling grid turned on. I m laying out my system in a ceiling plan view as my sprinklers are located in the ceiling plan and the rcp is what i have used in other software to do my drawing. In this example my roof element is at level 1. And now i need to set it s underlay to show the roof element.

I have previously just used revit to export out however i m now trying to do my design fire protection natively within revit. When the underlay orientation is set to look up then the underlay displays as if you are viewing it from below like a reflected ceiling plan. They want the floor plan orientation but with grid turned on.
